釩酸釔分束位移晶體（晶體厚片）

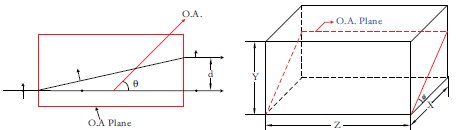

They can split the extraordinary ray and ordinary ray at certain spacing due to its large birefringence when the angle of incidence is 0 degree. It is often used in circulators and interleavers
Specifications
|
Item
|
Commercial
|
High Precision
|
|
Material:
|
YVO4
|
|
|
Dimension X×Y×Z:
|
2×2×5mm~3×3×15mm
|
|
|
Dimension tolerance:
|
±0.1mm
|
±0.05mm
|
|
Parallelism:
|
≤10″
|
|
|
OA.Orientation tolerance:
|
±0.1°
|
|
|
Clear Aperture:
|
90%
|
|
|
Surface Quality:
|
MIL20-10
|
|
|
Flatness:
|
λ/10@ 632.8nm
|
|
|
TWF Distortion:
|
λ/4@ 632.8nm
|
|
|
Bevel(face width×45°):
|
Protective bevel or specified by customer
|
|
|
Coating on input and output surfaces:
|
Uncoated, AR coating ect.
|
|
