C 透鏡
They are specifically designed for fiber optics applications. They are mostly useful for collimators, isolators, switches, collimator array and WDM. Compare to other gradient index lens, they have several advantages including low cost, low insertion loss in long working distance and wide working distance range. We can also provide custom designed C-lens per customer's requirement with our experienced optical design engineers.
Specifications
|
Item
|
Specifications
|
|
Material:
|
Glass like material
|
|

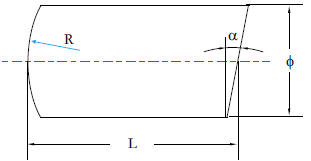

Diameter φ:
|
1.0+0.005/-0.01mm；1.8+0.005/-0.01mm
|
|
Angle α:
|
8°
|
|
Length tolerance:
|
±0.04mm
|
|
Surface figure(per 25.4mm):
|
λ/10@ 632.8nm
|
|
Surface quality:
|
MIL40-20
|
|
Clear aperture:
|
90%
|
|
AR coating:
|
R<0.2%@λc±40nm；λc=1310；1550…
|
|
Thermal expansion coefficient:
|
＜6×10^-6/℃
|
|
Operating Temperature:
|
≤400℃
|
