C-Polarizer

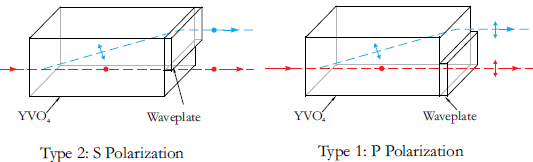

They consist of an YVO4 Beam displacer and? λ/2 Waveplates. They can split extraordinary ray and ordinary ray at certain spacing when the angle of incidence is 0 degree, then rotate the polarization status of two beams according to customer's requirement by the ?λ/2 waveplates. We can offer these C-polarizer with high polarization purity and epoxy-free in optical path. They make your assembly process simplify. They are useful for circulators, interleavers and DGE/DCE.
Specifications
|
Item
|
Commercial
|
High Precision
|
|
Material:
|
YVO4 and Quartz
|
|
|
Dimension X×Y×Z:
|
3×3×7mm
|
|
|
Dimension tolerance:
|
±0.1mm
|
±0.05mm
|
|
Beam deviation:
|
＜3 ′
|
|
|
Clear Aperture:
|
85%
|
|
|
Surface Quality:
|
MIL60-40
|
MIL20-10
|
|
ER（Extinction Ratio）:
|
5000:1
|
|
