干涉濾光片
They are extremely narrow band or linear variable transmittance across the substrate.They are a dispersion device that allows isolation of specific wavelength from input beam in 1 to 40nm of the half bandwidths (full width half maximum) by interference of multilayer coating. The extremely narrow FWHM enhances the spectral characteristics of a laser source or detector.They are usually multilayer of dielectrics and metals.
Specifications
|
Item
|
Commercial
|
High Precision
|
|
Material:
|
Fused Silica; N-BK7 or others
|
|
|

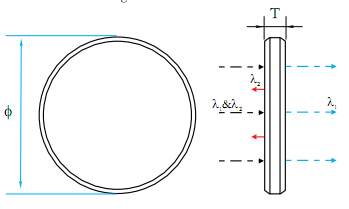

Dimension X×Y(φ):
|
1×1mm~25.4×25.4mm；φ3~φ25.4mm
|
|
|
Dimension tolerance:
|
±0.1mm
|
±0.03mm
|
|
Parallelism:
|
＜3′
|
＜30″
|
|
Clear aperture:
|
85%
|
|
|
Surface quality:
|
MIL20-10
|
|
|
Flatness(per 25.4mm):
|
λ/4@ 632.8nm
|
λ/8@ 632.8nm
|
|
FWHM:
|
10 nm
|
|
|
Wavelengths tolerance:
|
±2nm for 10nm FWHM
|
|
|
Coating:
|
Specified by customer
|
|
